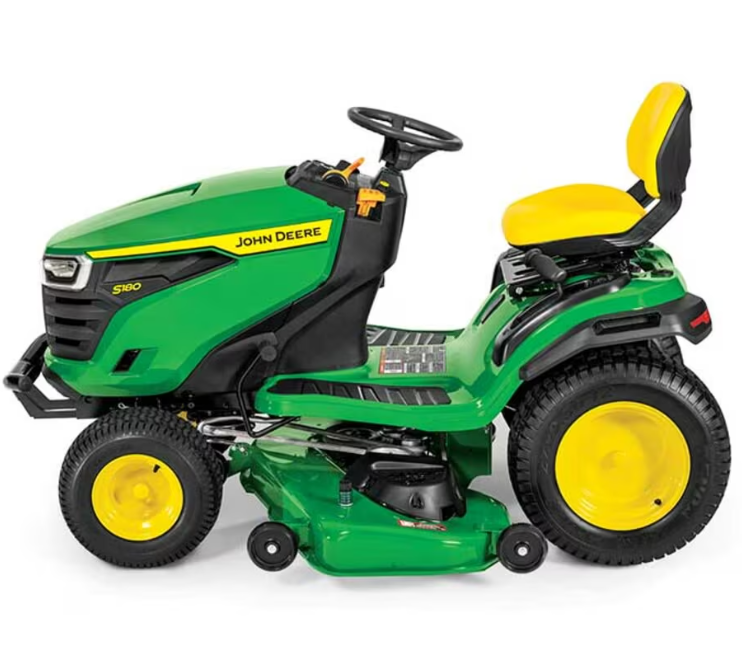

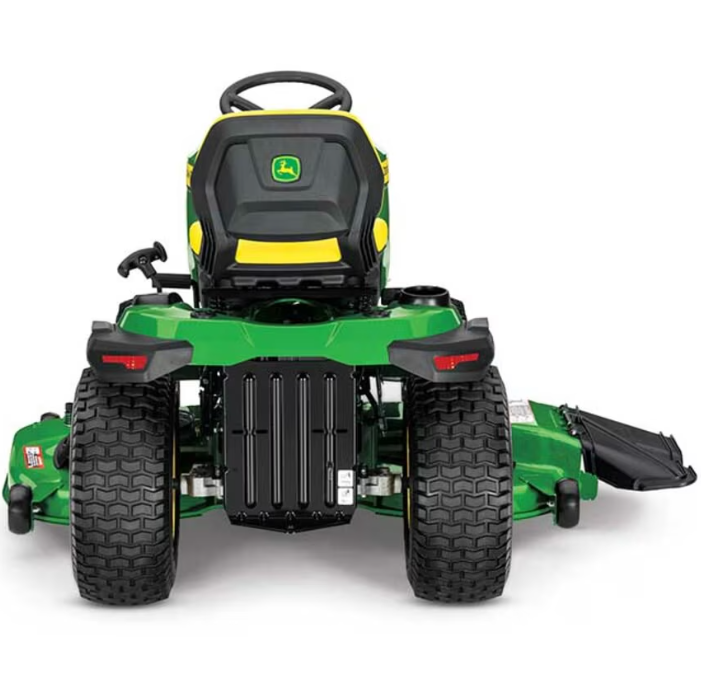

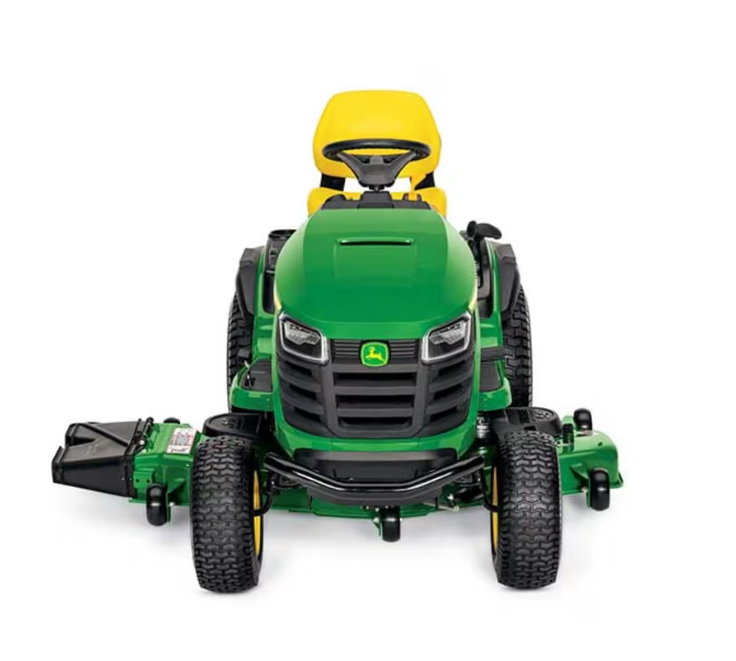

The JHON DEERE 100 Series Lawn Tractor - S180

1289.00

24-hp (17.9-kW)* V-Twin engine
54-in. (137-cm) Edge™ mower deck
Electric PTO, heavy-duty hydrostatic transmission with side-by-side pedals
Assembled in Tennessee

        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          In order to give back to everyone's love for our watches, you don't need to worry about the tariff issue. We have applied to the customs department and the tax will be paid unilaterally by us. Please rest assured to buy. Finally, thank you for your continued support

          In order to give back to everyone's love for our watches, you don't need to worry about the tariff issue. We have applied to the customs department and the tax will be paid unilaterally by us. Please rest assured to buy. Finally, thank you for your continued support

          Description

          Features

          Engine is powerful and smooth-running V-twin design

          24-hp (17.9-kW) ELS engine

          A 24-hp (17.9-kW) V-twin extended-life series (ELS) engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:

          • Includes ELS engine features for enhanced performance and longer life
          • V-twin cylinder design for greater torque, lower vibration, and improved sound quality
          • Electronic ignition for fast starts
          • Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
          • Cast-iron cylinder liners for longer engine life
          • Overhead valves for excellent power and fuel economy
          • Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
            • More effective when operating the tractor on an incline
          Fuel tank
          Fuel filler opening
          • The capacity is 2.4 U.S. gal. (9.1 L).
          • The fuel filler opening is conveniently located under the seat.
            • Filling the tank without spilling is easy.
            • A tethered fuel tank cap is more convenient.
            • The sealed fuel cap helps keep vapors inside the tank.

          John Deere Easy Change™ 30-second oil change system

          John Deere Easy Change 30-second oil change systemJohn Deere Easy Change 30-second oil change system

          The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

          The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

          The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

          • A synthetic filter material is used for more predictable filtering and longer life.
          • Filtering capacity is greater than with a standard oil filter.
            • More filter surface area
            • More oil flow capacity
          • The system has 40 percent more oil volume.
          • The oil and engine run cooler.
          • The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.
          • The risk of spilling during oil service is greatly reduced.
          • Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.
          • This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

          Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

          Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With  the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

          Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

          Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

          Full-featured engine is more reliable and lasts longer

          24-hp (17.9-kW) engine24-hp (17.9-kW) engine

          This full-featured engine is engineered to deliver world-class endurance and power. A step above the competition, it is designed to be more dependable and longer lasting, saving time and money over the long run.

          Built to exceed demanding needs by incorporating premium features and innovative designs:

          • Overhead valve (OHV) design for cooler operation and longer valve life
          • Contains an advanced debris management system that directs cooling air through the rotating screen to the air cleaner compartment, where large debris is pre-filtered through ejector slots
            • Keeps unfiltered air out of the engine through a large, dual-sealed, premium oval-shaped cartridge-style filter
            • Ensures maximum protection for extended engine life with the premium air cleaner, a pleated paper filter with a foam precleaner
            • Captures fine particles for maximum protection and extended maintenance
          • Provides maximum protection with full-pressure lubrication system
            • Pumps oil by a mechanical gerotor-style pump to all critical engine components
          • A premium bearing package for improved durability; includes a super-finished crank pin bearing with a 50 percent smoother surface to increase load capacity by 35 percent
            • Uses a premium DU Teflon®-coated bearing
            • Helps resist wear and increases durability through self-lubricating bronze bearing
          • Wear-resistant, chrome-plated valve stems for long-life valves
            • 44 percent smoother for longer life
          • Cast-iron cylinder liners for longer life
          • Dependable float-feed type carburetor with integral fuel pump
          • High-capacity fuel filter for dependable operation
          • John Deere Easy Change™ 30-second oil change system makes changing the engine oil easy, quick, and clean
          • Maintenance-free electronic ignition for quick, dependable starts
          • Platinum spark plugs for extended life

          Eye-catching styling built upon a dependable full-length welded steel frame

          Light emitting diode (LED) headlights complement modern styling
          LED headlightsLED headlights

          S120 Lawn TractorS120 Lawn Tractor

          The 100 Series Lawn Tractors are equipped with LED headlights that:

          • Complement the tractor’s modern styling
          • Use less power and are far more durable than incandescent light bulbs
          • Provide a natural light quality that increases visibility in low-light conditions
          • Light the field of view evenly
          Hood will not rust or dent
          S120 hoodS120 hood

          The hood used on 100 Series Lawn Tractors is made using the mold-in color process. The hood reduces sound, will not rust or dent, and provides resistance to UV light. Side openings let in plenty of cooling air while keeping the sound level low.

          Reliable full-length welded steel frame
          Solid one-piece frame Solid one-piece frame

          Solid one-piece frame Solid one-piece frame

          The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

          • Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
          • One-piece, steel fender deck is bolted to the frame.
          Cast-iron front axle will not bend
          Front axle and wheel spindleFront axle and wheel spindle

          The front axle is constructed of solid cast iron that will not bend:

          • Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
          • Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
          • Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.
          Front bumper protects the tractor
          Front bumperFront bumper

          Front bumperFront bumper

          The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

          • Additional front-end protection
          • Attractive, bold style
          CargO Mount™ system makes installation of rear bagger and other attachments easy
          Rear CargO Mount pointsRear CargO Mount points

          Front CargO Mount points at the top of the dashboard (shown on S110)Front CargO Mount points at the top of the dashboard (shown on S110)
          Rear bagger is mounted with CargO Mount pointsRear bagger is mounted with CargO Mount points

          Snow blower controls are mounted with CargO Mount pointsSnow blower controls are mounted with CargO Mount points

          The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

          Snow removal is a strength of lawn tractors

          S140 Tractor with front blade, weather enclosure, weights, and tire chainsS140 Tractor with front blade, weather enclosure, weights, and tire chains

          S140 Tractor with snow blower, weights, and tire chainsS140 Tractor with snow blower, weights, and tire chains

          An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

          Equipment available for snow removal includes:

          • 44-in. (112-cm) Snow Blower
          • 46-in. (117-cm) Front Blade
          • Tire chains or TerraGrip traction belts
          • Weather enclosure
          • Weights

          Hydrostatic transmission gives an infinite choice of ground speeds

          Two-pedal speed/direction controlsTwo-pedal speed/direction controls

          Forward speed control pedal in useForward speed control pedal in use

          A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

          • Automotive-type accelerator controls ensure easy operation.
          • Operator can change direction without lifting foot off the platform.
          • Large pedal surface gives superior operator comfort.
          Hydrostatic transmission (TLT200 shown)Hydrostatic transmission (TLT200 shown)

          Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

          • Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
          • Tuff Torq K46 - S170 and S180

          Operator station designed for comfortable operation

          Comfortable operator station (S120 shown)Comfortable operator station (S120 shown)

          Comfortable operator station (S170 shown)Comfortable operator station (S170 shown)

          The operator station is designed for operator comfort and easy operation:

          • Controls are positioned where they are easy to reach and use to control the tractor.
          • The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
          • The seat is positioned to provide the most comfortable operator position.
          Steering wheel and dash (S130 shown)Steering wheel and dash (S130 shown)

          Wide footrest with debris channelsWide footrest with debris channels

          Controls are easy to see and use:

          • Large, three-spoke steering wheel provides greater operator comfort and control.
          • Ignition switch is on the dash for starting ease.

          Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:

          • The wide footrest makes it easy to step over the mower deck while entering or exiting the seat.
          • Debris removing channels help keep the footrest area clean and dry.
          Comfortable, open-back seatComfortable, open-back seat

          Easy-to-adjust seatEasy-to-adjust seat

          Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:

          • The open-back seat design keeps the operator cooler
          • Especially helpful when operating the tractor for extended periods of time
          • Easily adjusted forward or rearward while in the seat
          • Seat travel of 5.5 in. (14 cm) and 10 different positions to adjust for operator height
          Seat raised for fuel-fill access showing seat springsSeat raised for fuel-fill access showing seat springs

          Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

          The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

          Covered storage compartment and beverage holderCovered storage compartment and beverage holder

          A beverage holder and covered storag compartment, located on the right fender, are conveniently located and easy to use.

          Handgrip and reflector on fender flareHandgrip and reflector on fender flare

          On the S130, S160, S170, and S180 models, fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.

          SPEC

          Engine power    24 hp/17.9 kW
          Oil change    John Deere Easy Change™ 30-second oil change system
          Engine manufacturer/model    44U877 (M44)
          Transaxle type    K46 heavy-duty hydrostatic, two-wheel drive
          Transaxle control    Side-by-side pedals
          Rear tires    22x9.5-12
          Lift system type    Spring-assisted hand-grip lever
          Cutting width    Edge™ mower deck, 54 in. 137 cm
          U.S. warranty    2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

          ENGINE

          Power    24 hp/17.9 kW
          Displacement    44.2 cu in. 724 cc
          Manufacturer/model    44U877 (M44)
          Type    Overhead valve, full-pressure lube, oil filter
          Cylinders    V-twin - extended life series (ELS)
          Governor    Mechanical
          Choke/speed control    Single lever with spring-return on choke
          Cooling method    Air
          Air cleaner    Cartridge with prefilter
          Oil change    John Deere Easy Change 30-second oil change system
